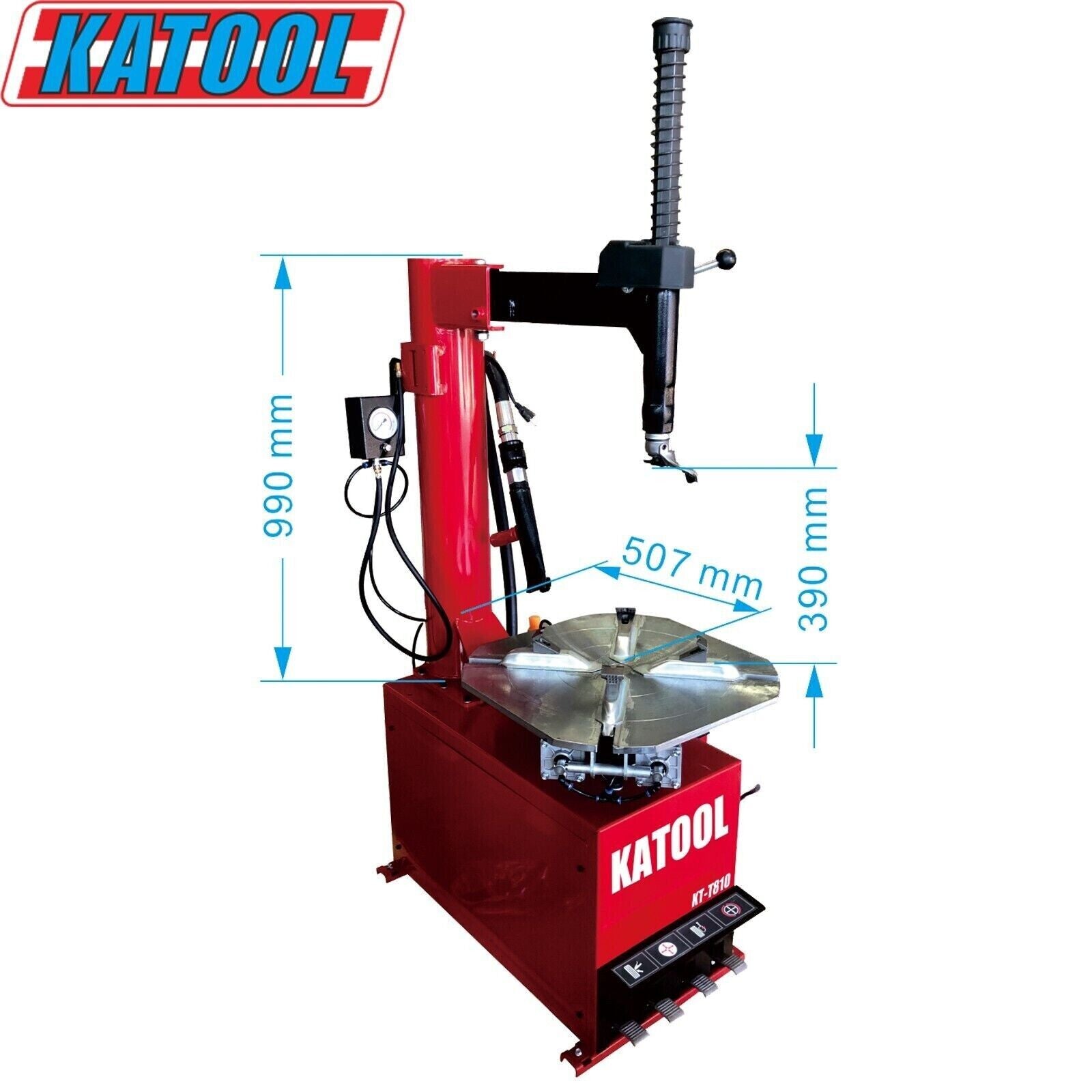

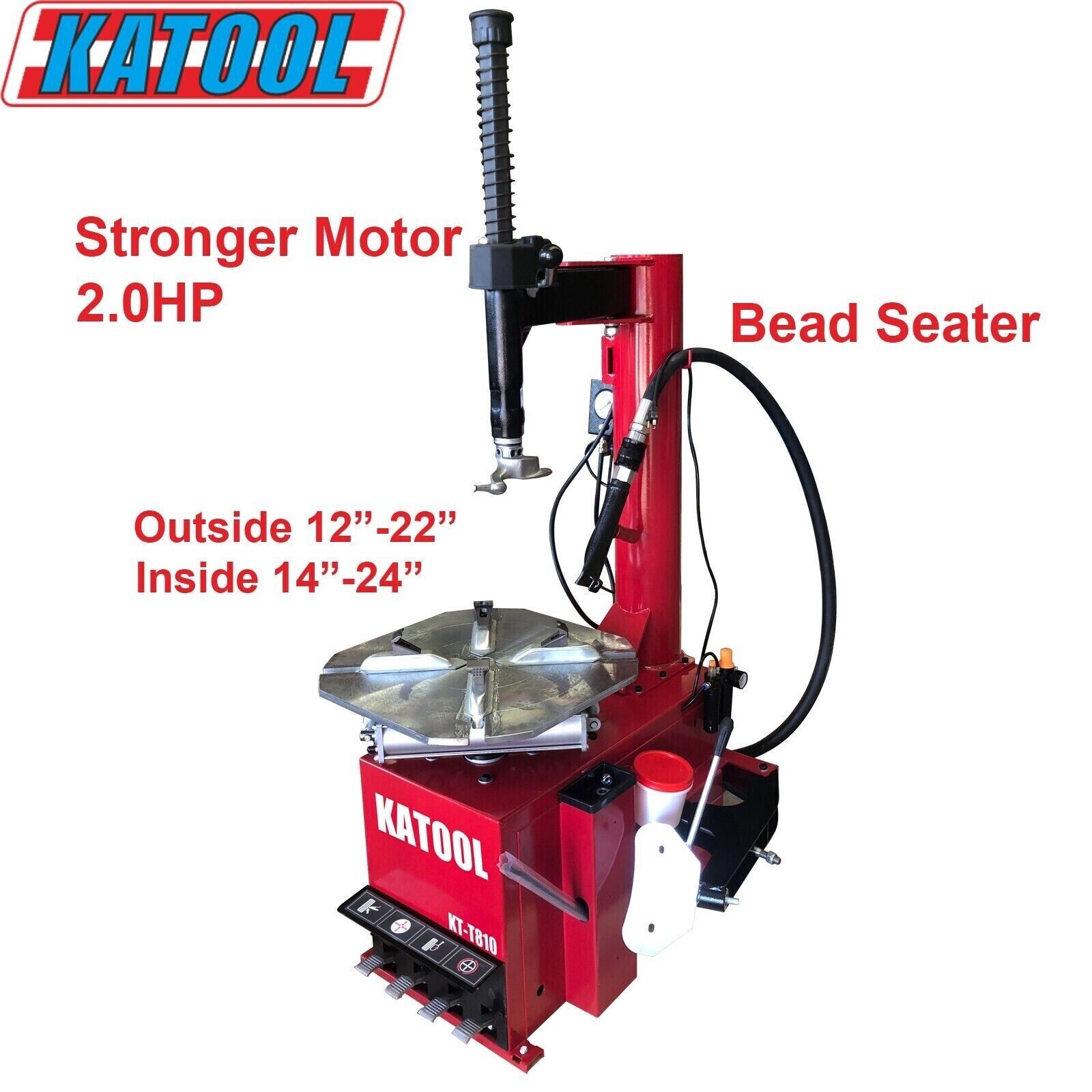

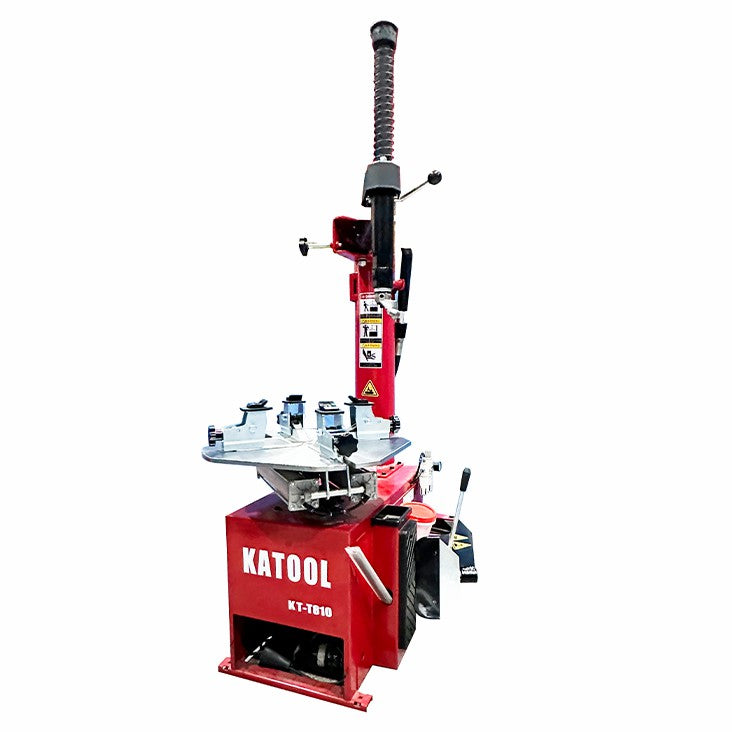

Katool KT-T810 Tire Changer

Overview: The Katool KT-T810 is a professional-grade swing-arm tire changer designed to facilitate efficient and precise tire mounting and demounting for various vehicle types. Its robust construction and advanced features make it an ideal choice for automotive workshops and service centers.

Specifications:

• Max Wheel Diameter: 41" (1040mm)
• Max Wheel Width: 15" (380mm)
• Outside Clamp Capacity: 12"–22"
• Inside Clamp Capacity: 14"–24"
• Power Supply: 120V single-phase
• Motor Power: 2.0HP (1.5KW)
• Rotation Speed: 6.8 RPM
• Air Pressure Requirement: 0.8–1.0Mpa (116–145psi)
• Net Weight: 186 kg

Features:

• Durable Alloy Steel Jaw: The jaw undergoes carburization treatment to a depth of 0.8–1.1mm, enhancing both its toughness and hardness. A protective jaw cover is included to prevent rim damage.

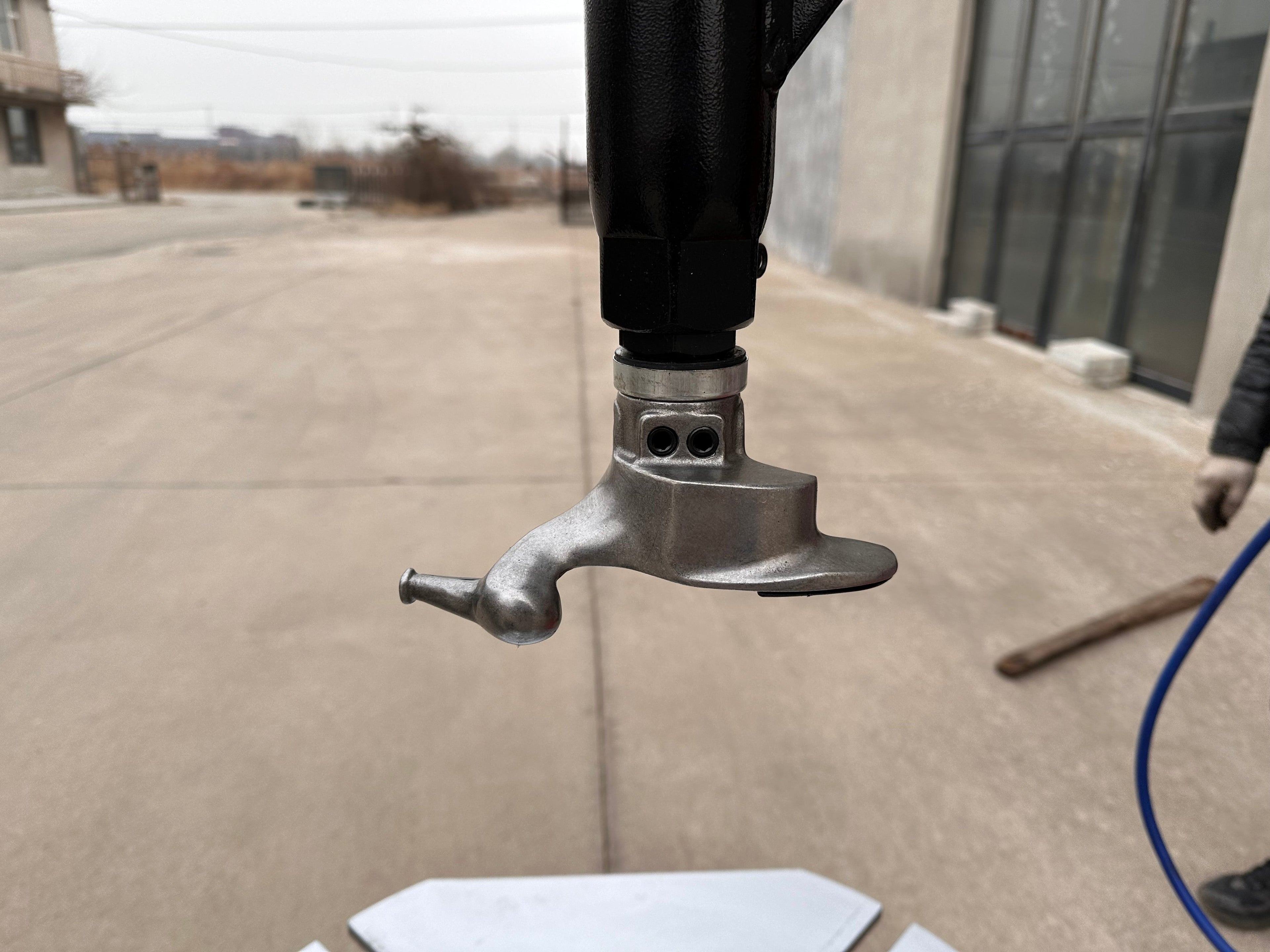

• Stainless Steel Mounting Head: Designed according to engineering mechanics, the mounting head features a polished stainless steel construction with a plastic cover to safeguard rims during operation.
• Pedal-Controlled Inflation Gauge: Allows for hands-free control of tire inflation, improving operational efficiency.
• High-Quality Spade Cover: Effectively prevents rim damage during tire changing processes.
• Pull-Type Pedal Control System: Simplifies tire changing and maintenance tasks, offering intuitive operation.
• Top-Level Motor: Equipped with a pure copper winding motor, the KT-T810 provides robust power, efficient heat dissipation, a lower defect rate, and an extended service life.
• Reliable Lubricator: Ensures consistent oil delivery and effectively filters compressed air, thereby extending the lifespan of the pneumatic system.
• Bead Blast Seater Head with Post Tank: Facilitates efficient seating of tire beads during inflation.
• Closed Body Design: Protects internal components from external elements, enhancing the machine's durability and reliability.

Installation: The KT-T810 is designed for straightforward installation. It should be positioned on a stable, level surface within the workshop and connected to a 120V power source. An air supply providing 116–145psi is required for pneumatic operations. Detailed installation instructions are provided in the user manual, and it is recommended that installation be performed by qualified personnel to ensure safety and optimal performance.

Warranty: Katool offers a comprehensive warranty for the KT-T810:

• Parts Warranty: 1-year coverage on all product parts.
• Structural Warranty: 3-year coverage on the product's structural components.

Free shipping is provided for warranty parts; however, labor costs are not included.

Important Details:

• Safety Precautions: Always follow the safety guidelines outlined in the user manual. Ensure that the machine is properly grounded and that operators are trained in its use to prevent accidents.
• Maintenance: Regular maintenance is crucial for the longevity and performance of the tire changer. This includes routine inspections, cleaning, and lubrication as specified in the maintenance schedule.
• Environmental Conditions: Operate the machine within the recommended temperature range and ensure the working environment is free from excessive dust and moisture to maintain optimal functionality.

Video Demonstration: For a visual demonstration of the Katool KT-T810 Tire Changer in operation, you can refer to the following video:

Katool KT-T810 Tire Changer Operation Video
