Atlas PRO9000 9,000lb 4 Post Vehicle Lift - Extra Tall & Wide

Overview

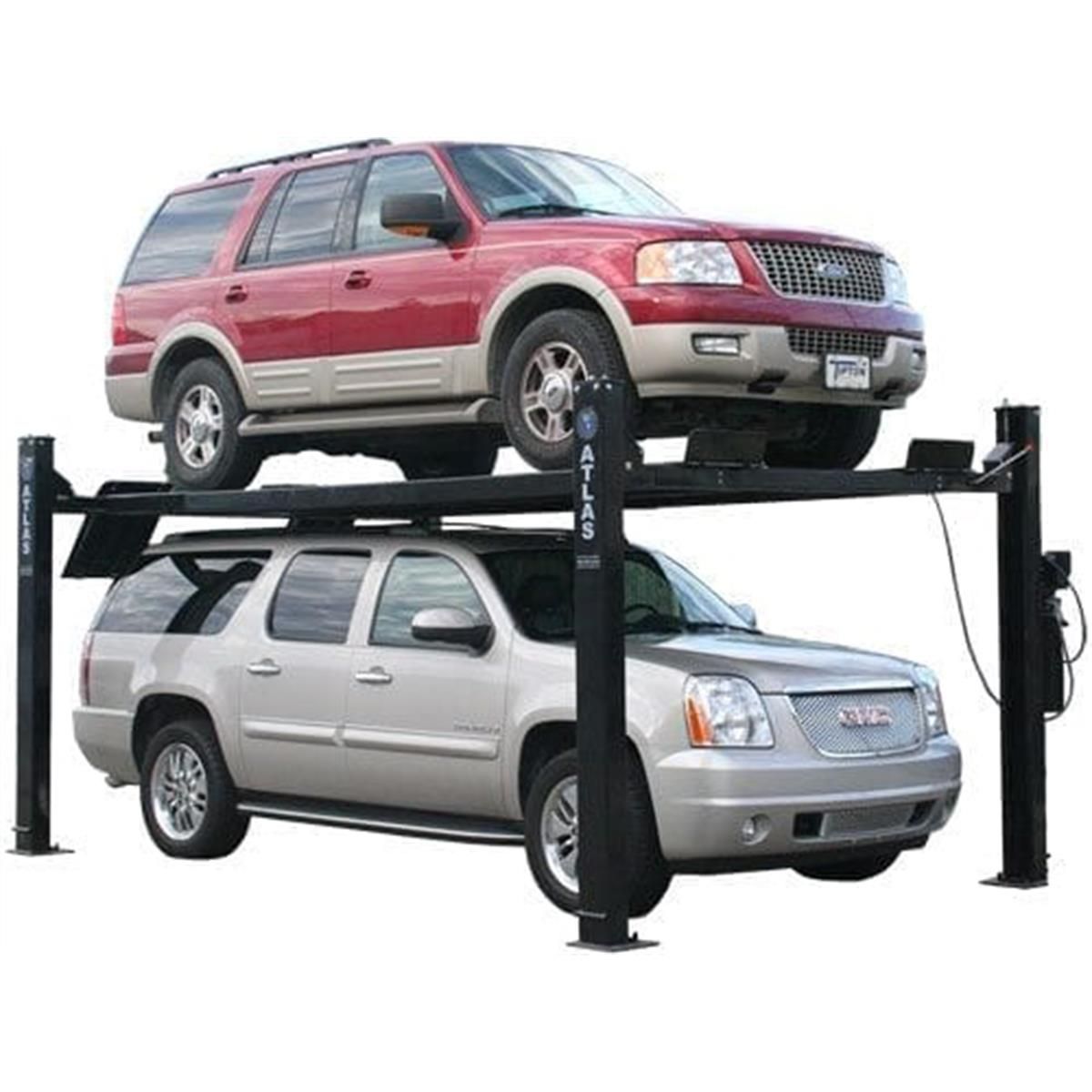

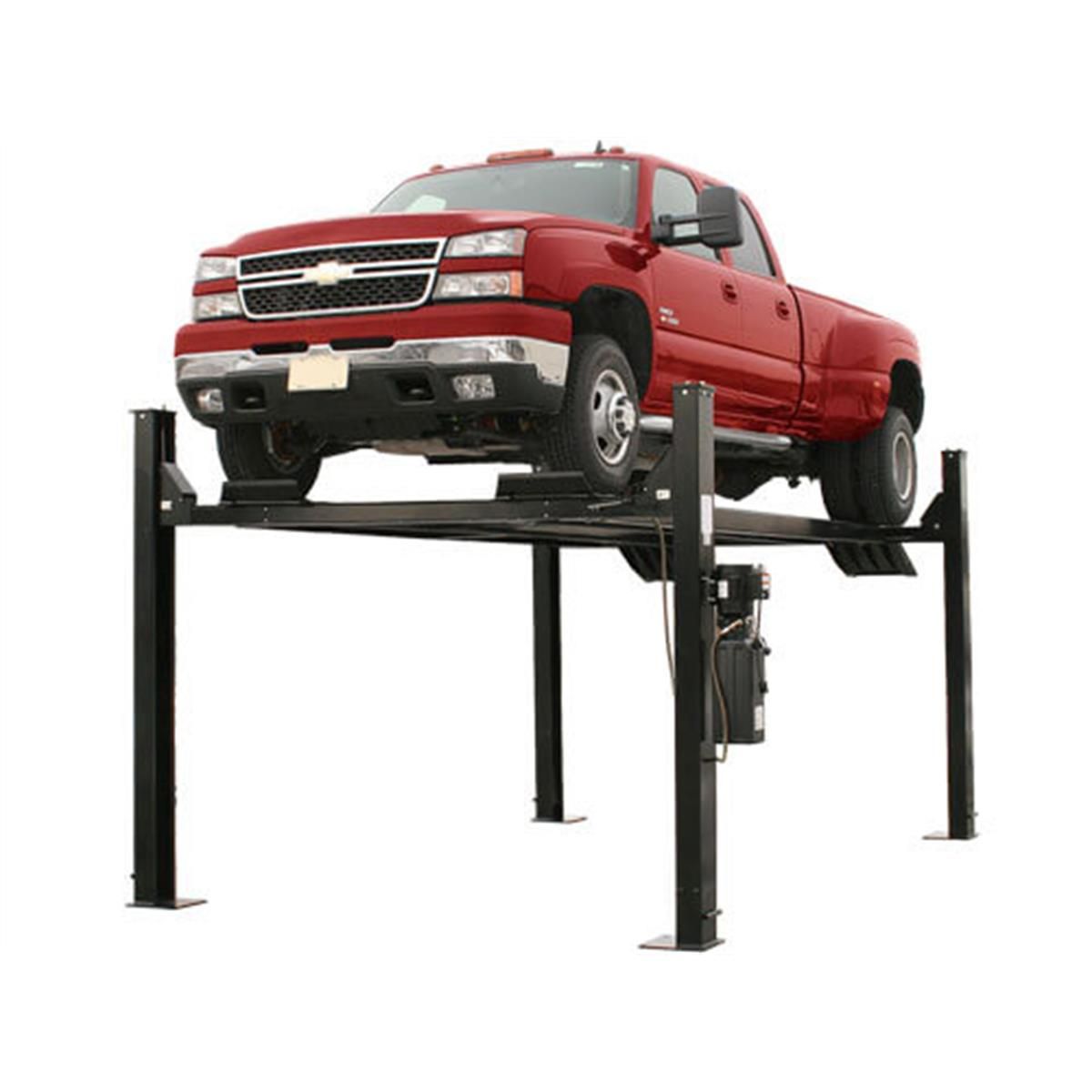

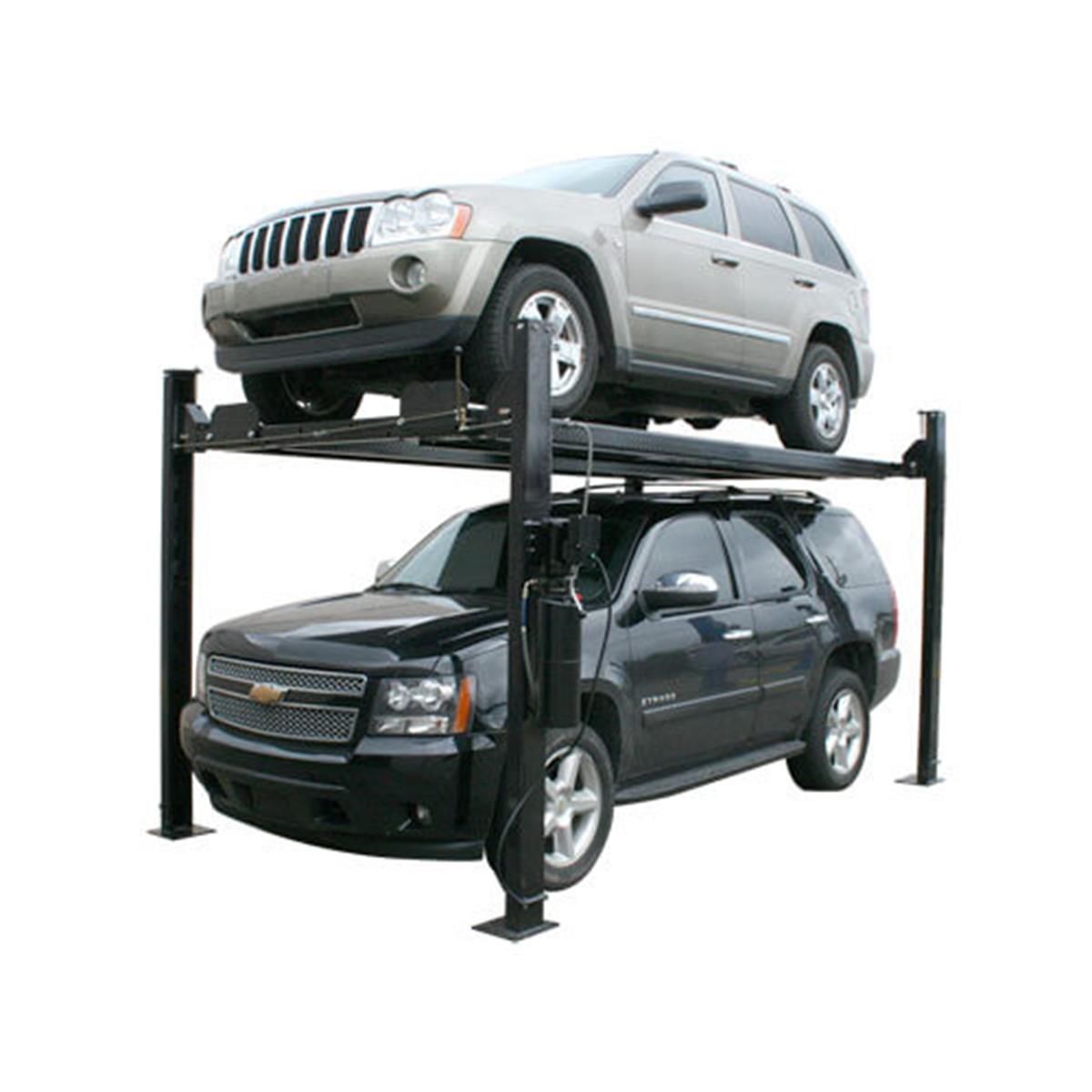

The Atlas® Garage PRO9000 is a heavy-duty, portable 4-post lift designed for both commercial service centers and home garages. With a 9,000 lb. lifting capacity, it accommodates a wide range of vehicles, from compact cars to diesel dually trucks. Its extra-tall, extra-wide, and extra-long design provides ample space for vehicle storage and maintenance tasks.

Specifications

• Lifting Capacity: 9,000 lbs

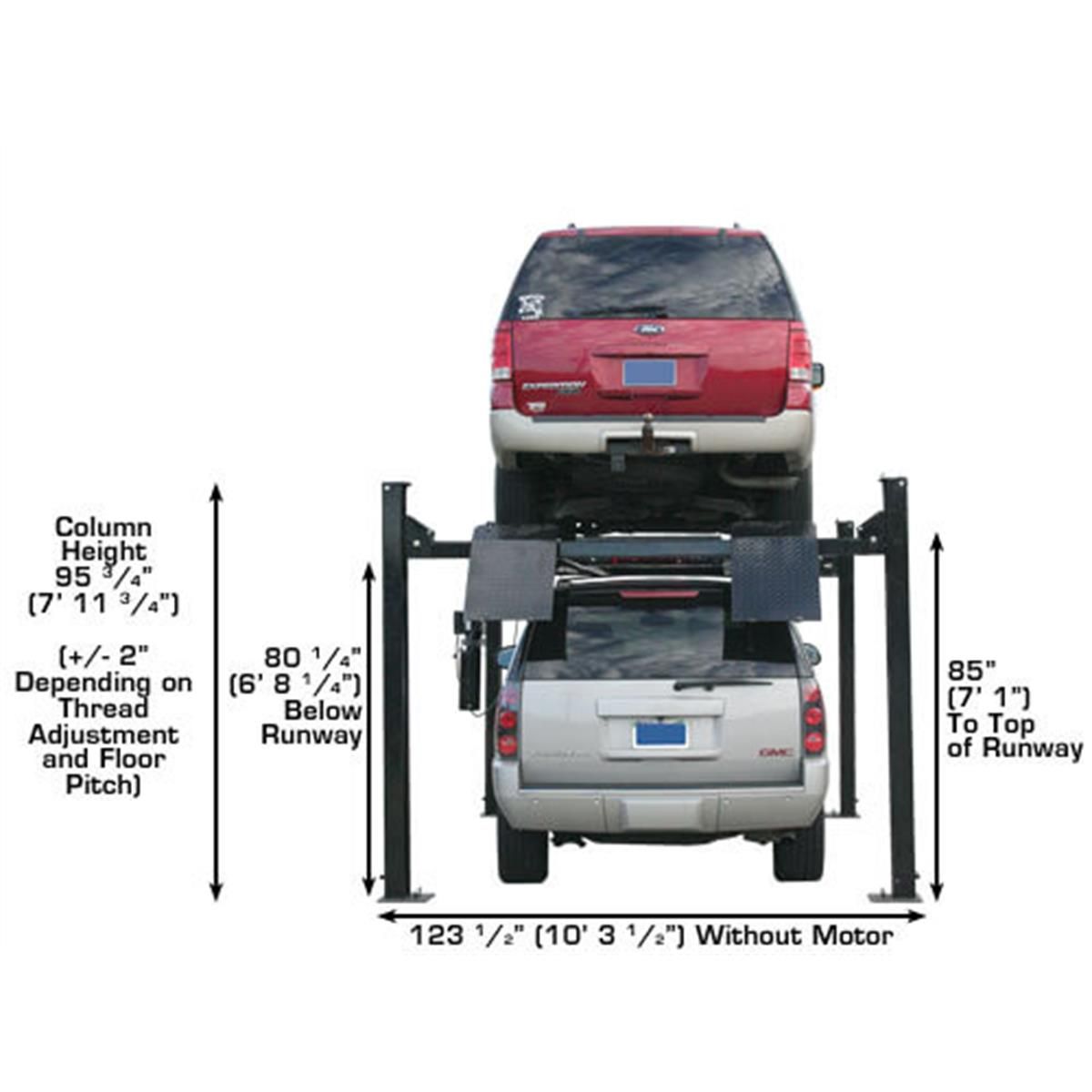

• Lifting Height to Top of Runway: 85"

• Clearance Under Runways: 80 1/4"

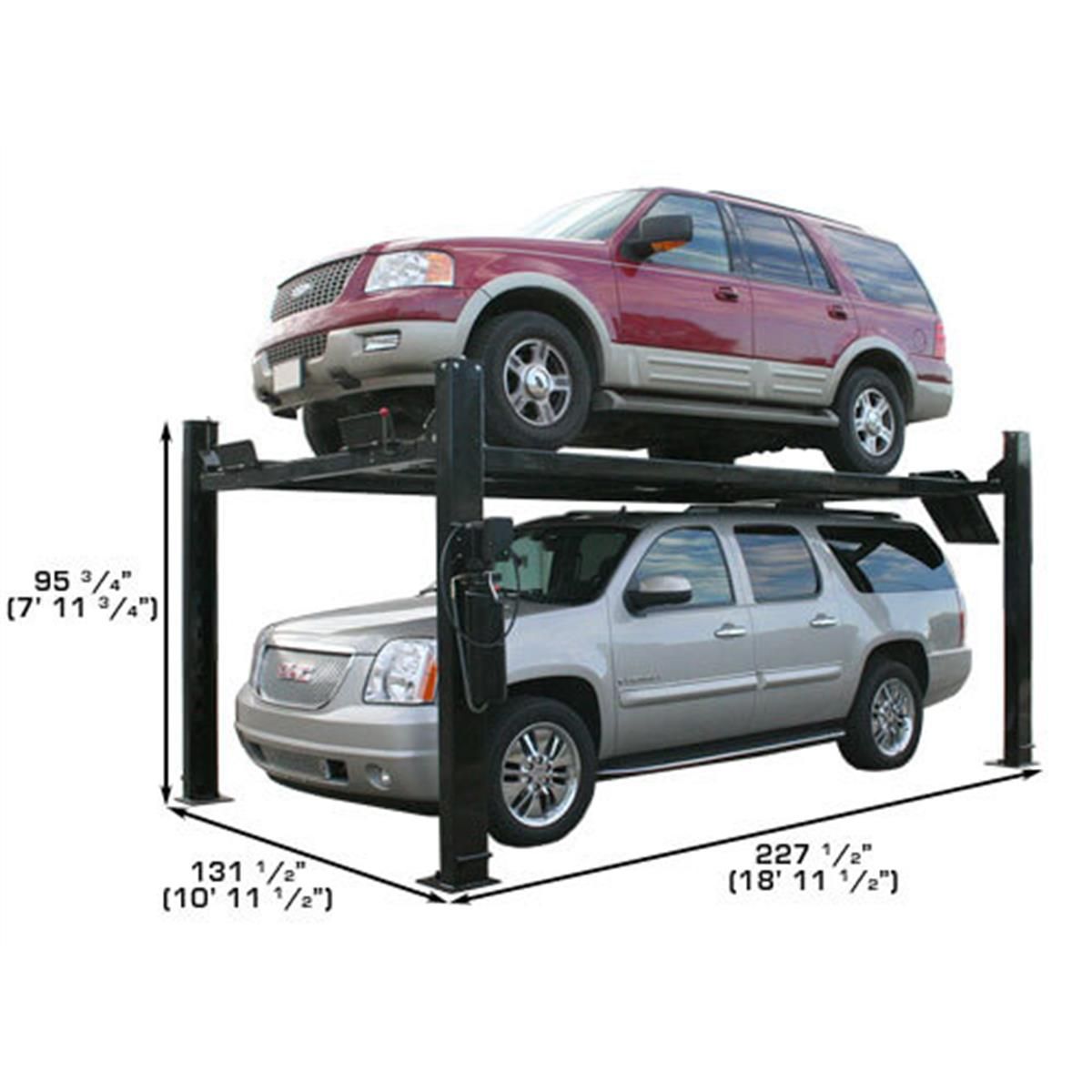

• Height of Columns: 95 3/4"

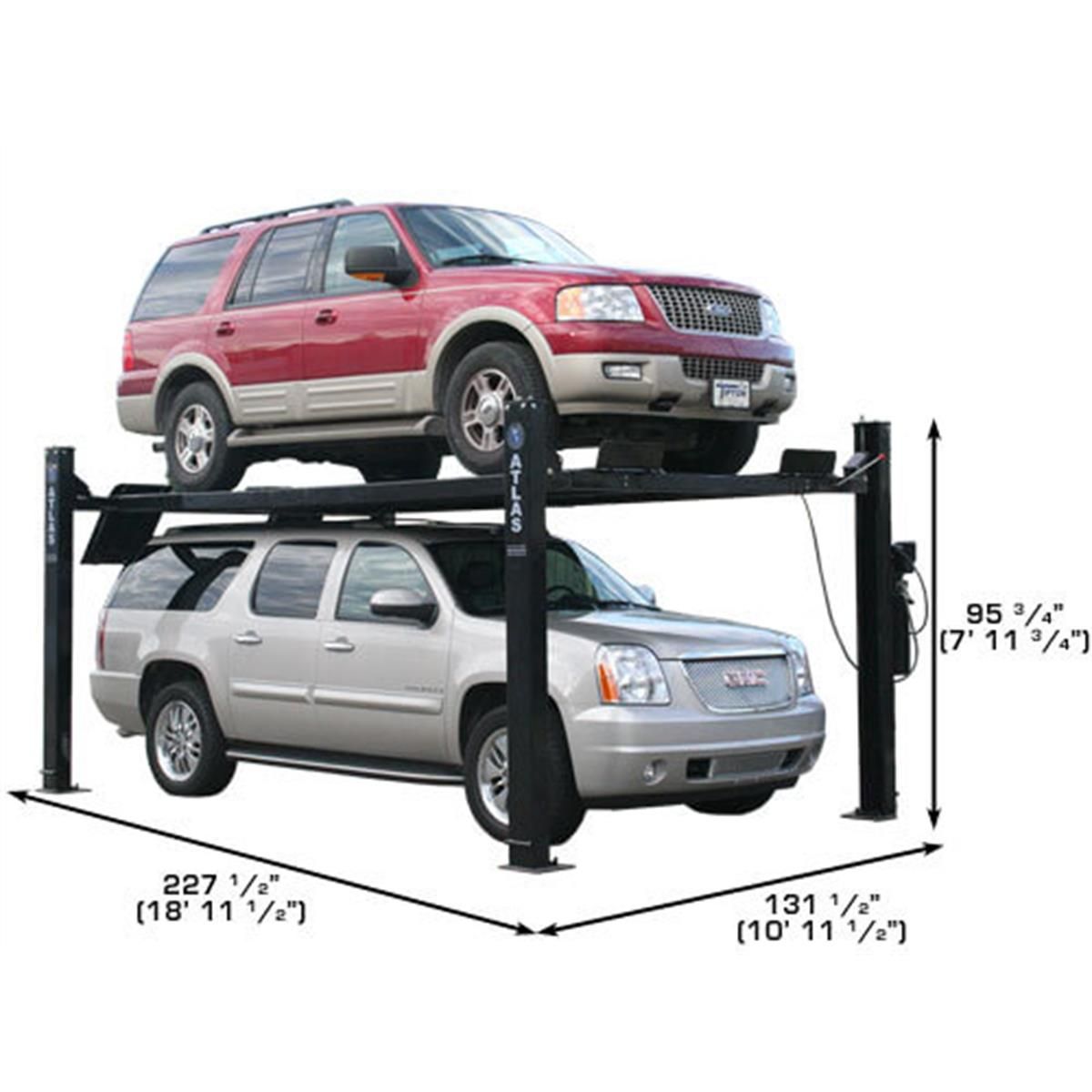

• Overall Width (Without Motor): 123 1/2"

• Overall Width (With Motor): 131 1/2"

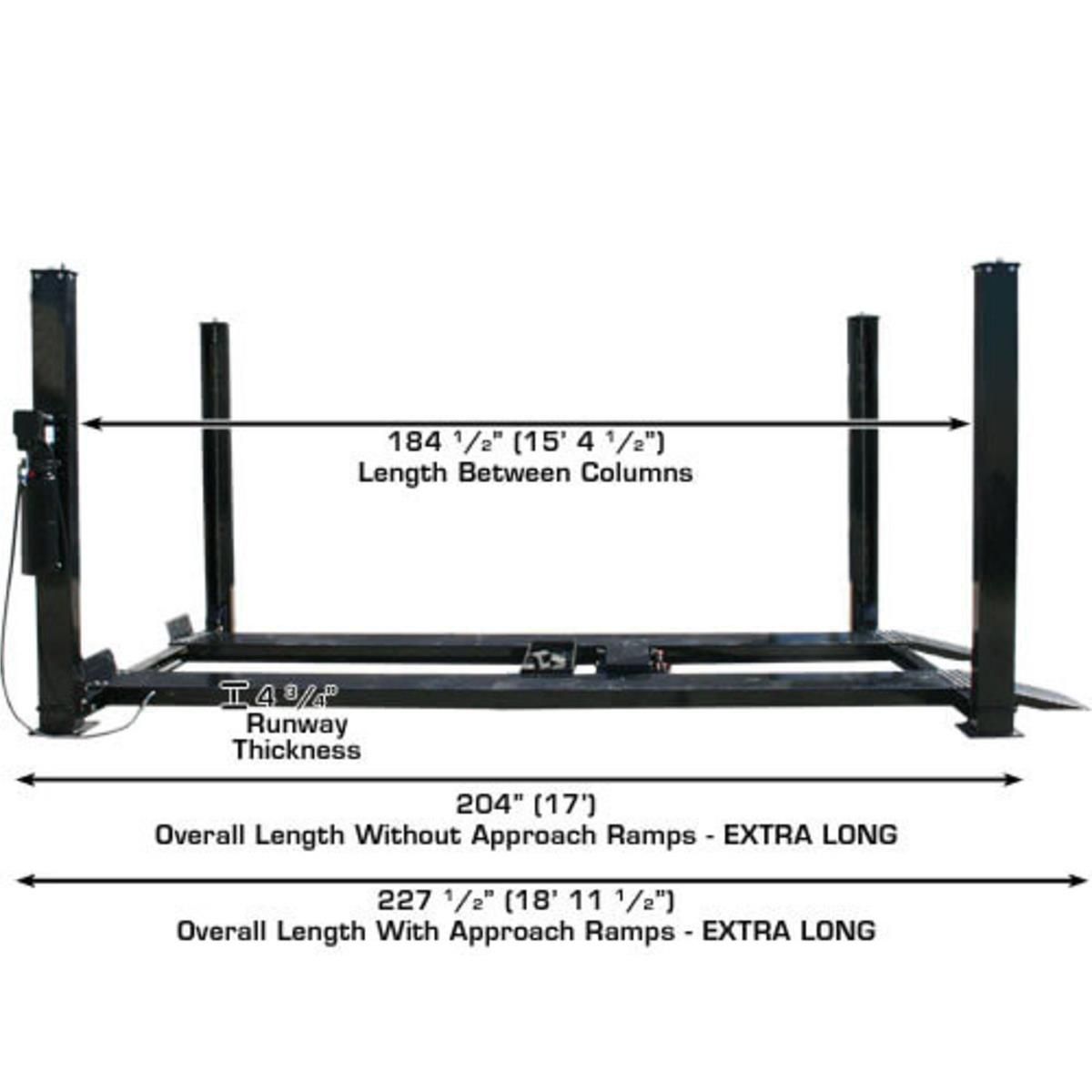

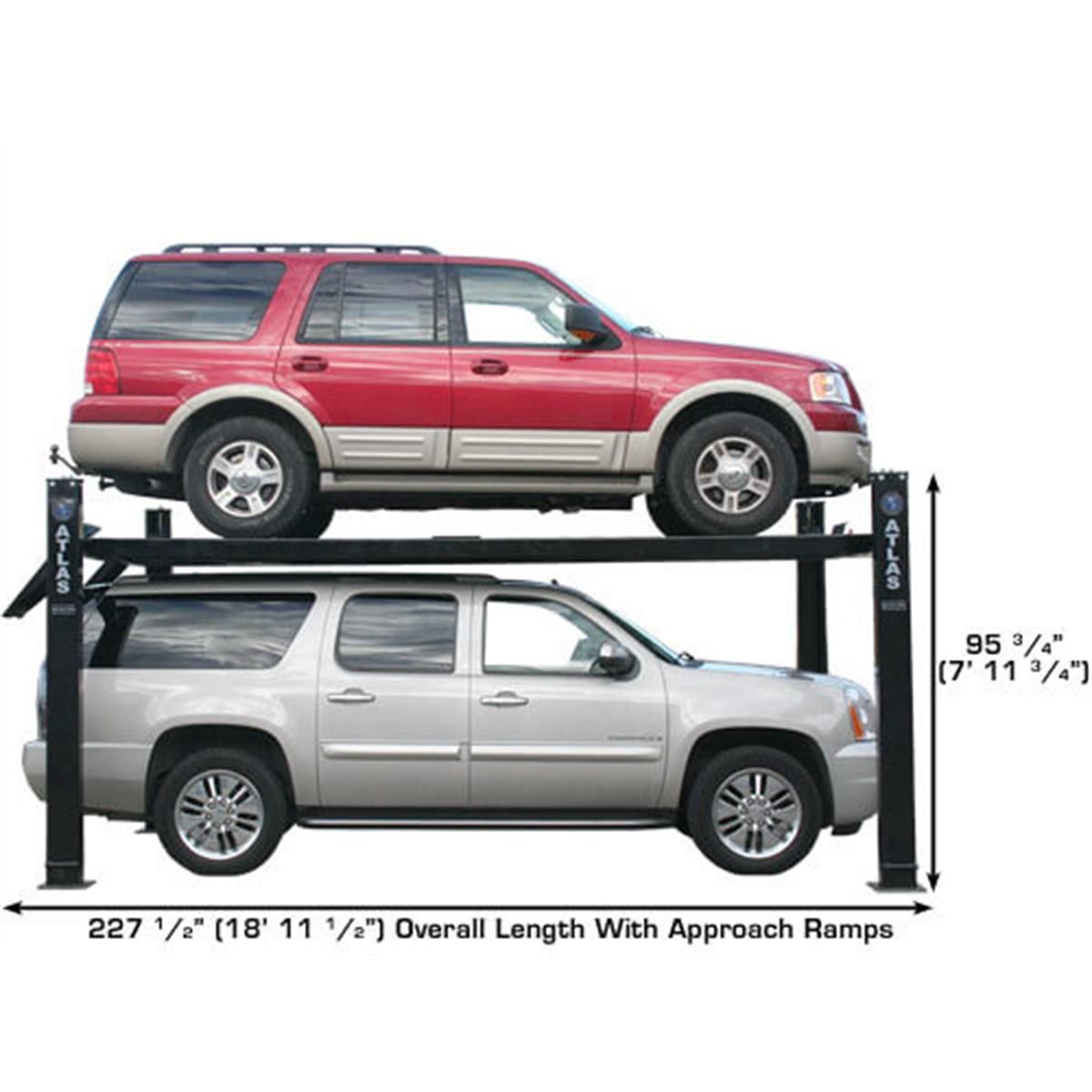

• Overall Length with Approach Ramps: 227 1/2"

• Overall Length without Approach Ramps: 204"

• Approach Ramp Length: 31"

• Runway Width: 21 1/4" (with rails) or 20" (driving surface)

• Runway Length: 199 1/2"

• Runway Thickness: 4 3/4"

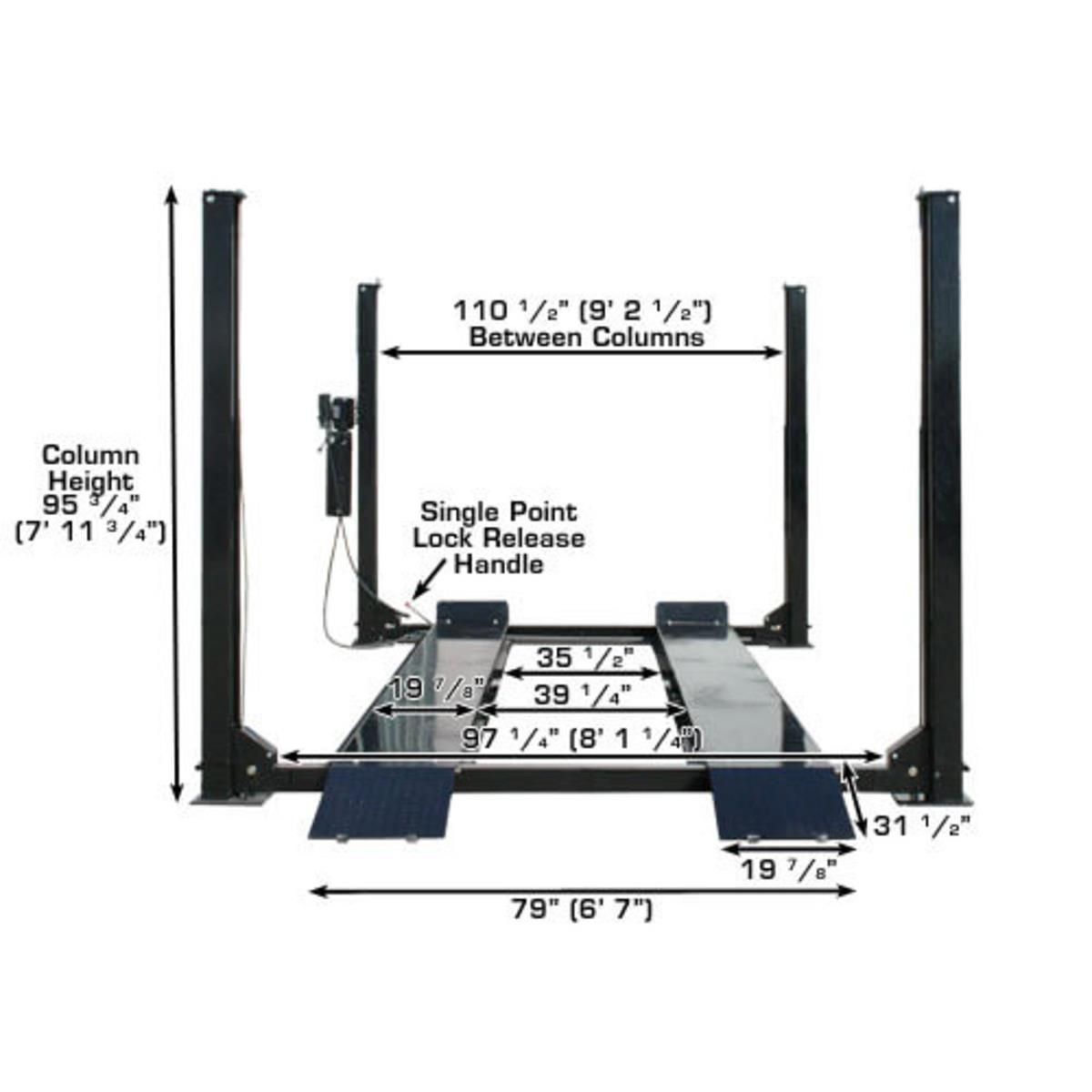

• Width Between Runways: 39 1/4"

• Width Between Runway Rails: 35 1/2"

• Outside Runway to Outside Runway: 79"

• Clearance Between Columns: 110 1/2"

• Length Between Columns: 184 1/2"

• Maximum Wheelbase: 187"

• Drive-Thru Width (Outside of Tire to Outside of Tire): 97 1/4"

• Column Size: 7 1/2" x 4 1/2"

• Base of Column: 11 1/2" x 11 1/2"

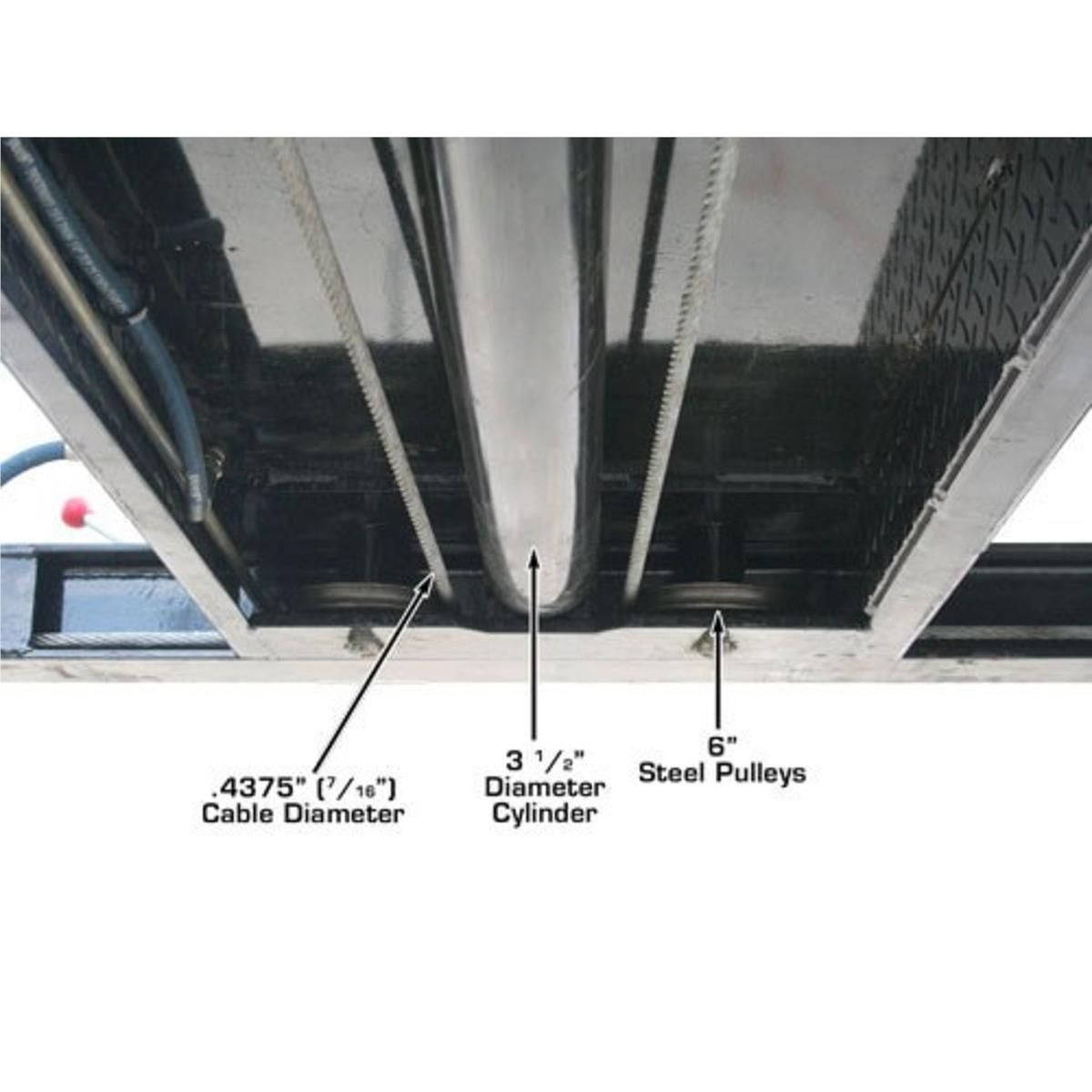

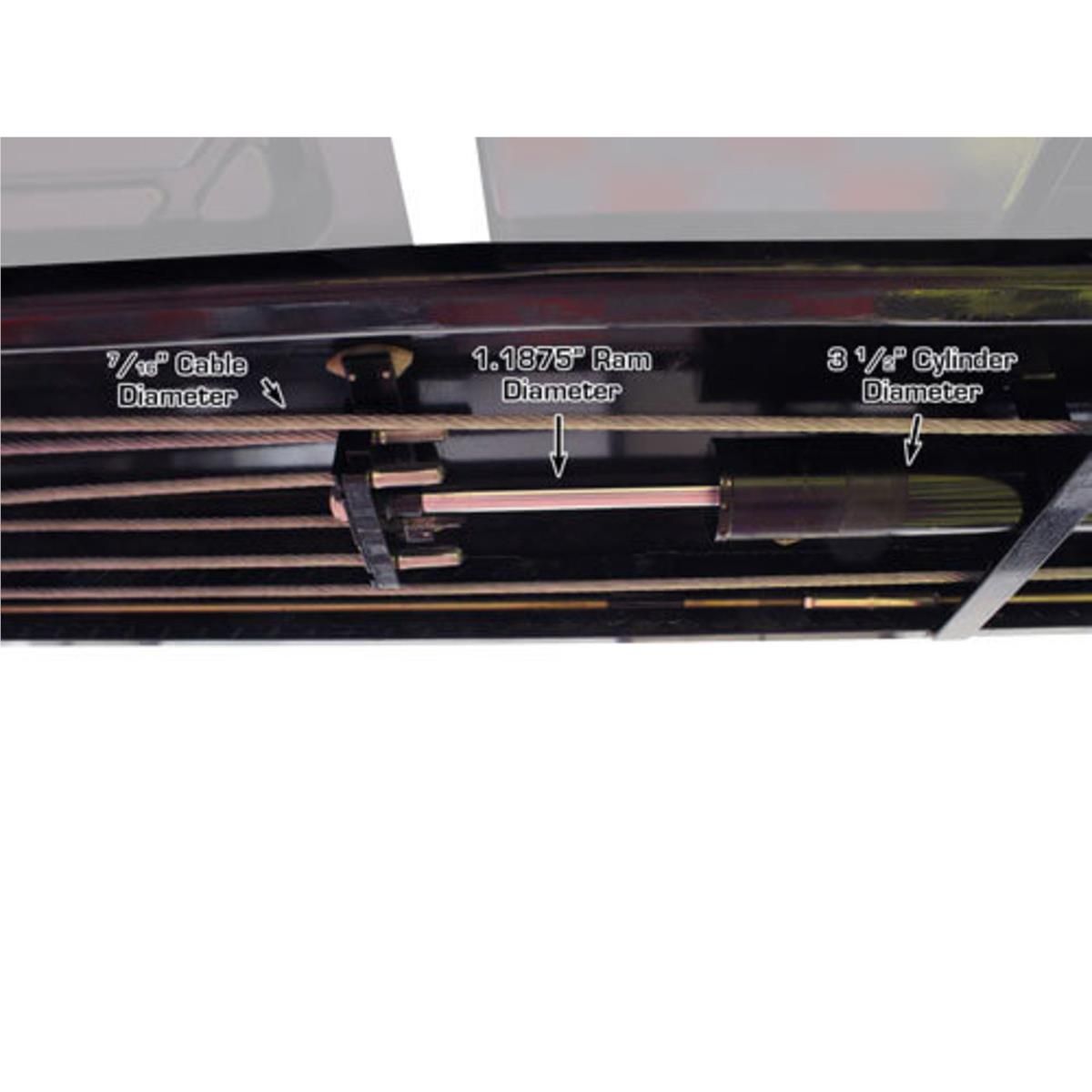

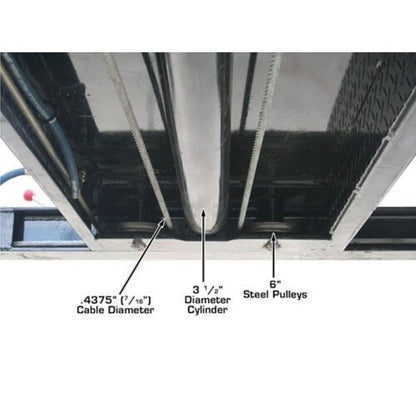

• Cable Diameter: 0.4375"

• Steel Gauge: 5 Gauge (0.2")

• Motor/Electrical Requirement: 110V, 30A breaker required

• Oil Requirement: 3-5 gallons AW32/AW46 (not included)

• Shipping Weight: Approximately 2,300 lbs

• Extra Tall, Wide, and Long Design: Accommodates a variety of vehicles, including those with extended wheelbases.

• Portable Design: Includes a caster kit with polyurethane wheels for easy relocation within the garage.

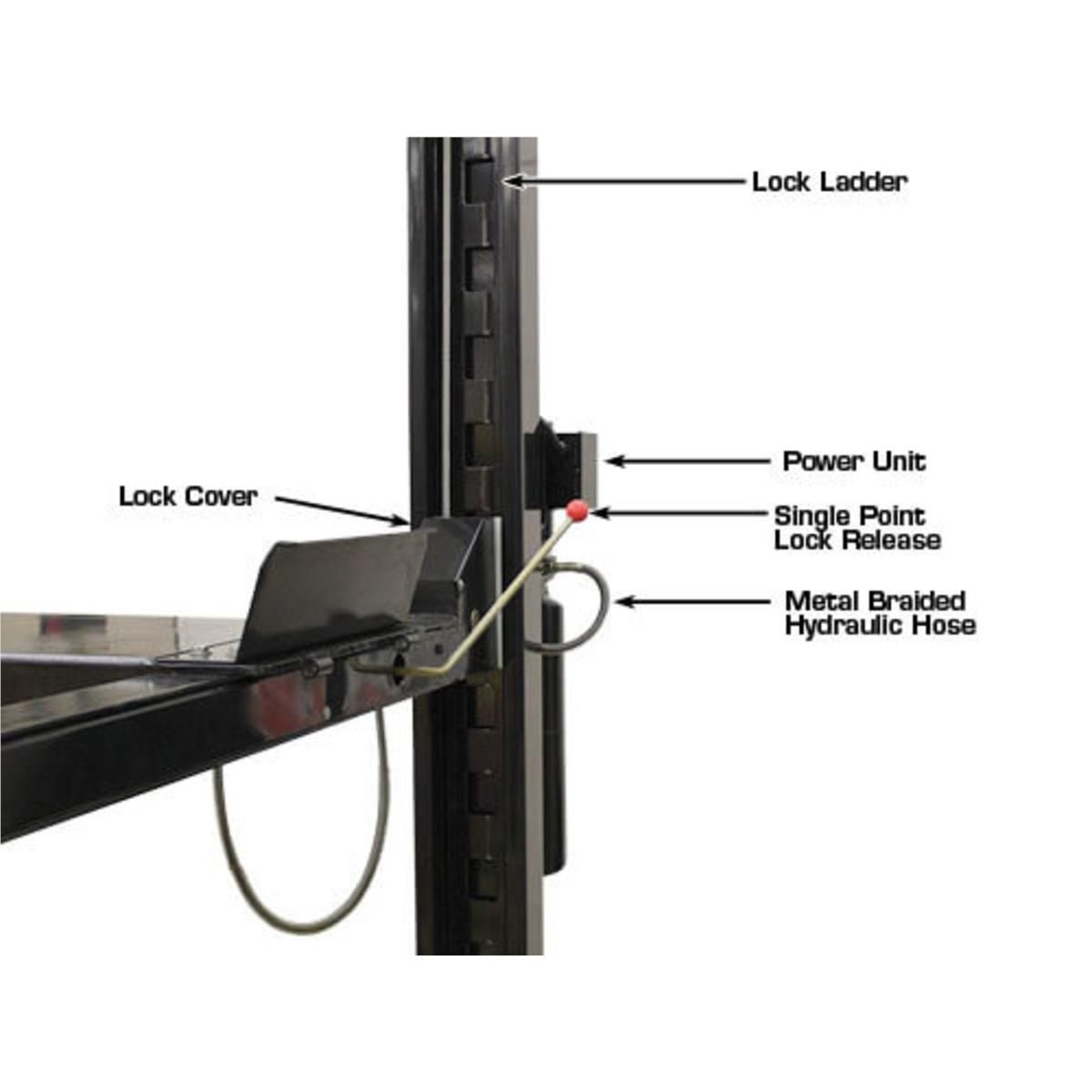

• Single-Point Lock Release: Simplifies operation by allowing simultaneous unlocking of all four posts.

• Lock Ladder Design: Provides multiple locking positions for added safety and versatility.

• Double Lock Safety System: Enhances safety by ensuring the lift remains securely locked during use.

• Atlas® Powder Coat Finish: Offers a durable and corrosion-resistant surface for long-lasting use.

• Included Accessories:

  • Steel approach ramps

  • Steel jack tray

  • Four plastic drip trays

  • Four wheel stops

  • Two rubber wheel chocks

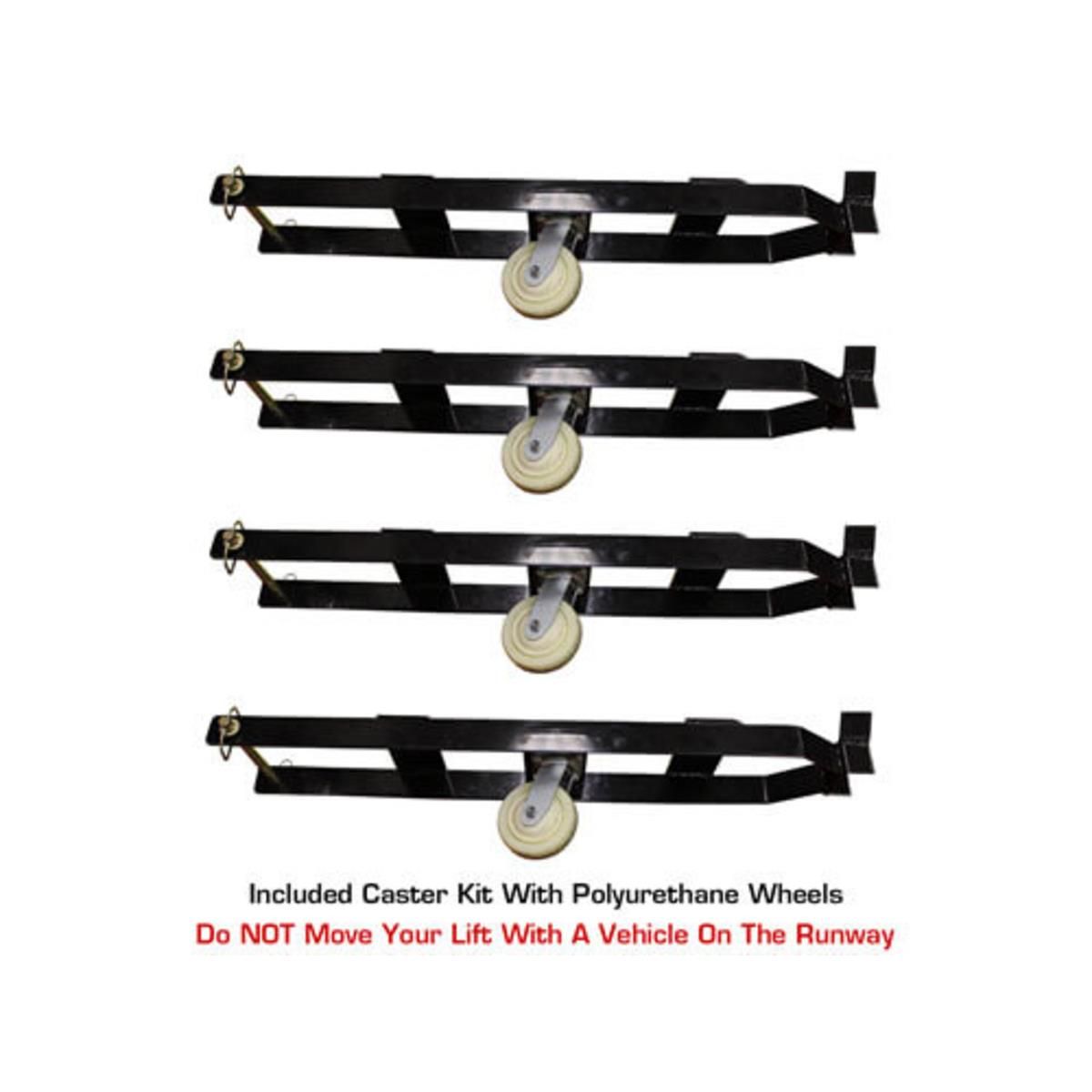

  • Caster kit with polyurethane wheels

Installation Requirements

• Ceiling Height: Minimum of 9 feet to accommodate the lift's overall height.

• Concrete Specifications: Minimum 4" thick concrete with a strength of 3,000 psi.

• Electrical: 110V single-phase power supply with a 30A breaker.

Warranty

• Structural Components: 2-year limited warranty.

• Hydraulic Components: 1-year limited warranty.

Important Details

• Vehicle Compatibility: Suitable for a wide range of vehicles, including compact cars, sedans, SUVs, and light trucks.

• Safety Precautions: Operators should adhere to the safety guidelines outlined in the user manual to prevent accidents and ensure proper use.

• Maintenance: Regular inspections and maintenance are recommended to keep the equipment in optimal working condition and extend its lifespan.

• Environmental Conditions: Operate the lift in a clean, dry, and well-ventilated environment to ensure safety and efficiency.
